ДЪННИ ПЛАТКИ

Чипсет: AMD B550

Форм фактор: ATX Form Factor; 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Тип памет: 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory * Next Generation AMD Ryzen PRO Processors; 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Dual Channel Memory Architecture

Звук: Realtek ALC887 7.1-Channel High Definition Audio CODEC; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback; Audio Feature : - Optical S/PDIF out port(s) at back panel; - LED-illuminated design; - Audio Shielding; - Dedicated audio PCB layers; - Premium Japanese audio capacitors; - Unique de-pop circuit

LAN: Realtek® RTL8111H; ASUS LANGuard

Графика: 1 x DisplayPort 1.2 *; 1 x HDMI 2.1(4K@60HZ)

ОС: Windows® 10 64-bit

Чипсет: AMD® B650

Форм фактор: Micro-ATX, 244x235mm

Тип памет: 2x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 96GB (2x 48GB), up to 7600 MHz(OC)

Звук: Realtek® ALC897 HD Audio, 5.1 Channel

LAN: Realtek® RTL8125BG 2.5 Gigabit Ethernet

USB: 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)

ОС: Windows 10/11 - 64 Bit

Чипсет: - AMD A520

Форм фактор: - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; - Solid Capacitor design

Тип памет: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - Max. capacity of system memory: 64GB**; - Supports Extreme Memory Profile (XMP) memory modules; - 15? Gold Contact in DIMM Slots

Звук: - 7.1 CH HD Audio (Realtek ALC887 Audio Codec); - Supports Surge Protection

LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

Графика: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports; - Supports Microsoft® PlayReady

ОС: - Microsoft® Windows® 10 64-bit

Чипсет: AMD A620

Сокет: AM5

Форм фактор: Micro ATX - 24.4 x 22.6 cm

Слотове за памет: 2

Wi-Fi: Не

Тип памет: DDR5

Поддържани процесори: 7-мо Поколение AMD процесори, 8-мо Поколение AMD процесори, 9-то Поколение AMD процесори

Чипсет: AMD B550

Сокет: Socket AM4

Форм фактор: Micro ATX

Слотове за памет: 4

Тип памет: DDR4 SDRAM

Разположение на устройството: Вграден

LAN: 1 (RJ-45)

Гаранционен срок (месеци): 36 month(s)

Брой в опаковка: 1

Чипсет: AMD B550

Сокет: Socket AM4

Форм фактор: Micro ATX

Слотове за памет: 4

Тип памет: DDR4 SDRAM

Разположение на устройството: Вграден

LAN: 1 (RJ-45)

Чипсет: AMD B550

Форм фактор: ATX Form Factor; 30.5cm x 24.4cm

Тип памет: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory;Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules

Звук: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN: Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Графика: Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support for native HDMI 2.1 TMDS compatible ports.;(Graphics specifications may vary depending on CPU support.);Maximum shared memory of 16 GB

USB: CPU:;- AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel;- AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel;- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support;- 2 x USB 3.2 Gen 1 ports on the back panel;Chipset:;- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header;- 2 x USB 3.2 Gen 1 ports available through the internal USB header;- 4 x USB 2.0/1.1 ports available through the internal USB headers;Chipset+USB 2.0 Hub:;- 4 x USB 2.0/1.1 ports on the back panel

Чипсет: Intel B760

Форм фактор: mATX,243.84mmx243.84mm

Тип памет: 4x DDR4, Maximum Memory Capacity 128GB; Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC); Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz; • 1DPC 2R Max speed up to 4600+ MHz; • 2DPC 1R Max speed up to 4400+ MHz; • 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)

Звук: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio

LAN: Realtek® RTL8111H Gigabit LAN

Графика: 1x HDMI™; 1x DisplayPort; 1x VGA; Support HDMI™ 1.4, maximum resolution of 4K 30Hz*; Support DP 1.4, maximum resolution of 4K 60Hz*; Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

ОС: Support for Windows® 11 64-bit, Windows® 10 64-bit

Чипсет: Intel B760

Сокет: 1700

Форм фактор: Micro ATX - 24.4 x 24.4 cm

Слотове за памет: 4

Wi-Fi: Не

Тип памет: DDR4

Поддържани процесори: 12-то Поколение Intel, 13-то Поколение Intel, 14-то Поколение Intel

Чипсет: AMD B550

Сокет: Socket AM4

Форм фактор: ATX

Слотове за памет: 4

Тип памет: DDR4 SDRAM

Разположение на устройството: Вграден

LAN: 1 (RJ-45)

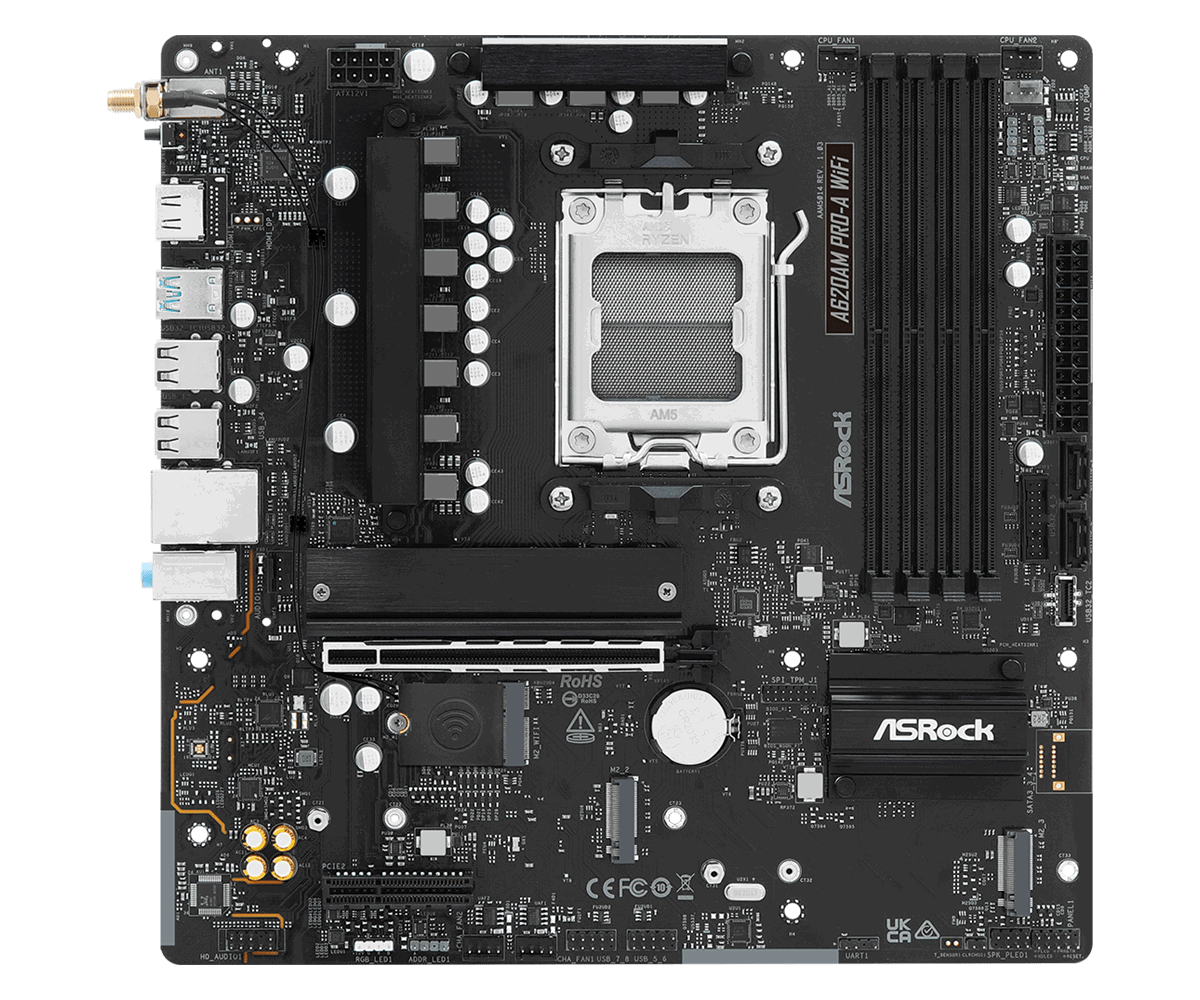

Чипсет: AMD A620A

Форм фактор: Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Wi-Fi: 802.11axe Wi-Fi 6E Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe;Supports Dual-Band 2x2 with extended 6GHz band support;2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.2;Supports MU-MIMO

Тип памет: Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);Max. capacity of system memory: 256GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Звук: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;- Smart Auto Adjust Bandwidth Control;- Visual User Friendly UI;- Visual Network Usage Statistics;- Optimized Default Setting for Game, Browser, and Streaming Modes;- User Customized Priority Control

Графика: Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

Чипсет: AMD B850

Сокет: AM5

Форм фактор: Micro ATX - 24.4 x 24.4 cm

Слотове за памет: 2

Wi-Fi: Не

Тип памет: DDR5

Поддържани процесори: 7-мо Поколение AMD процесори, 8-мо Поколение AMD процесори, 9-то Поколение AMD процесори

Чипсет: Intel H810

Сокет: 1851

Форм фактор: Micro ATX - 24.4 x 21.1 cm

Слотове за памет: 2

Wi-Fi: Не

Тип памет: DDR5

Поддържани процесори: Intel® Core™ Ultra Процесори (Серия 2)

Чипсет: AMD A620

Сокет: Socket AM5

Форм фактор: Micro ATX

Слотове за памет: 4

Тип памет: DDR5 SDRAM

Разположение на устройството: Вграден

LAN: 1 (RJ-45)

Чипсет: Intel B760

Сокет: 1700

Форм фактор: Micro ATX - 24.4 x 24.4 cm

Слотове за памет: 4

Wi-Fi: Не

Тип памет: DDR5

Поддържани процесори: 12-то Поколение Intel, 13-то Поколение Intel, 14-то Поколение Intel

Чипсет: AMD B850

Форм фактор: Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

Тип памет: Dual Channel DDR5 Memory Technology;2 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC);Max. capacity of system memory: 128GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Звук: 7.1 CH HD Audio (Realtek ALC897 Audio Codec);Nahimic Audio

LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Customized Priority Control

Графика: Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

USB: CPU:;- 3 x USB 3.2 Gen1 Type-A (Rear);- 1 x USB 2.0 (Rear (USB_2));Chipset:;- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front);- 2 x USB 3.2 Gen1 Type-A (Front);- 5 x USB 2.0 (1 Rear (USB_1), 4 Front)

Чипсет: AMD B850

Сокет: AM5

Форм фактор: Micro ATX - 24.4 x 22.6 cm

Слотове за памет: 2

Wi-Fi: Не

Тип памет: DDR5

Поддържани процесори: 7-мо Поколение AMD процесори, 8-мо Поколение AMD процесори, 9-то Поколение AMD процесори

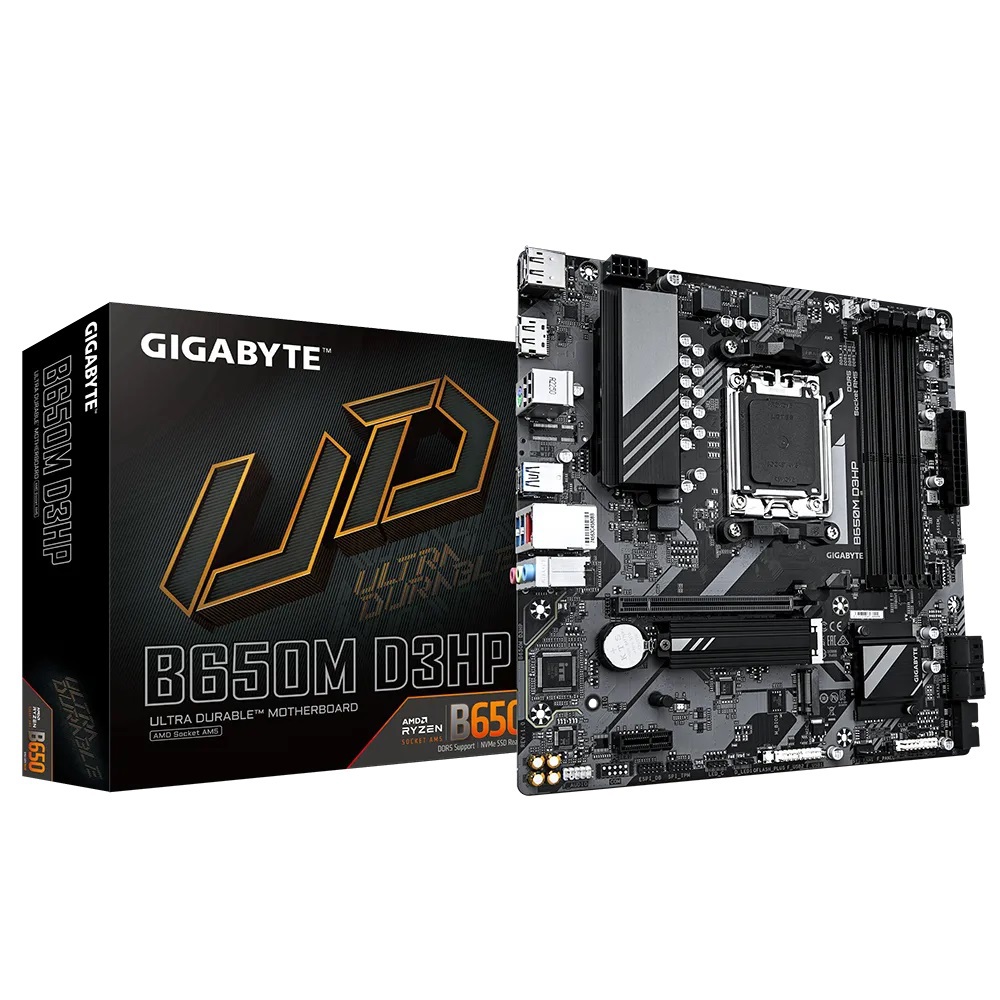

Чипсет: AMD B650

Форм фактор: Micro ATX Form Factor; 24.4cm x 24.4cm

Тип памет: Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE`s website for more information.)

Звук: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Графика: Integrated Graphics Processor with AMD Radeon™ Graphics support; - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support for native HDMI 2.1 TMDS compatible ports.; Support for up to triple-display at the same time; (Graphics specifications may vary depending on CPU support.)

ОС: Support for Windows 11 64-bit; Support for Windows 10 64-bit

Чипсет: Intel® B760 Express Chipset

Форм фактор: Micro ATX Form Factor; 24.4cm x 24.4cm

Тип памет: Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules; 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules

Звук: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.; Support for S/PDIF Out

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Графика: Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.); Support for up to quad-display at the same time

ОС: Support for Windows 11 64-bit; Support for Windows 10 64-bit
