ДЪННИ ПЛАТКИ

Чипсет: AMD X870E

Сокет: Socket AM5

Форм фактор: Extended ATX

Слотове за памет: 4

Wi-Fi: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wi-Fi 4, IEEE 802.11ac Wi-Fi 5, IEEE 802.11ax Wi-Fi 6, IEEE 802.11ax Wi-Fi 6E, IEEE 802.11be Wi-Fi 7

Тип памет: DDR5 SDRAM

Разположение на устройството: Вграден

Чипсет: AMD X870E

Сокет: AM5

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Wi-Fi: 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4

Тип памет: DDR5

Поддържани процесори: 7-мо Поколение AMD процесори, 8-мо Поколение AMD процесори, 9-то Поколение AMD процесори

Чипсет: AMD X870E

Сокет: AM5

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Wi-Fi: 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4

Тип памет: DDR5

Поддържани процесори: 7-мо Поколение AMD процесори, 8-мо Поколение AMD процесори, 9-то Поколение AMD процесори

Чипсет: Intel® Z890 Chipset

Форм фактор: ATX Form Factor;30.5 cm x 24.4 cm

Wi-Fi: Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate;Bluetooth® v5.4

Тип памет: 4 x DIMM slots, max. 256GB, DDR5;Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture ;Supports Intel® Extreme Memory Profile (XMP) memory module;Supports DIMM FlexDIMM Fit;ASUS Enhanced Memory Profile III (AEMP III)

Звук: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel;Audio Features;- SupremeFX Shielding Technology;- Savitech SV3H712 AMP ;- Gold-plated audio jacks- Rear optical S/PDIF out port ;- Premium audio capacitors;- Audio cover

LAN: 1 x Intel® 2.5Gb Ethernet;ASUS LANGuard

Графика: 1 x DisplayPort;1 x HDMI® port;2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs

Чипсет: AMD X870E

Wi-Fi: Wi-Fi 7 Solution;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be;Supports Bluetooth® 5.4**, MLO, 4KQAM

Тип памет: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen™ 9000 Series Processors max. overclocking frequency:;• 1DPC 1R Max speed up to 8400+ MT/s;• 1DPC 2R Max speed up to 6400+ MT/s;• 2DPC 1R Max speed up to 6400+ MT/s;• 2DPC 2R Max speed up to 4800+ MT/s;Supports AMD POR Speed and JEDEC Speed;Supports Memory Overclocking and AMD EXPOTM;Supports Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM, Clock Driver bypass mode only

Звук: Realtek® ALC4080 Codec;7.1-Channel USB High-Performance Audio;Supports up to 32-Bit/384 kHz playback on front panel;Supports S/PDIF output

LAN: 1x Realtek® 8126 5G LAN;1x Realtek® 8125 2.5G LAN

Графика: 1x HDMI™;Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz;2x Type-C DisplayPort;USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz

Bluetooth: 5.4

Чипсет: Intel Z890

Сокет: 1851

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Wi-Fi: 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4

Тип памет: DDR5

Поддържани процесори: Intel® Core™ Ultra Процесори (Серия 2)

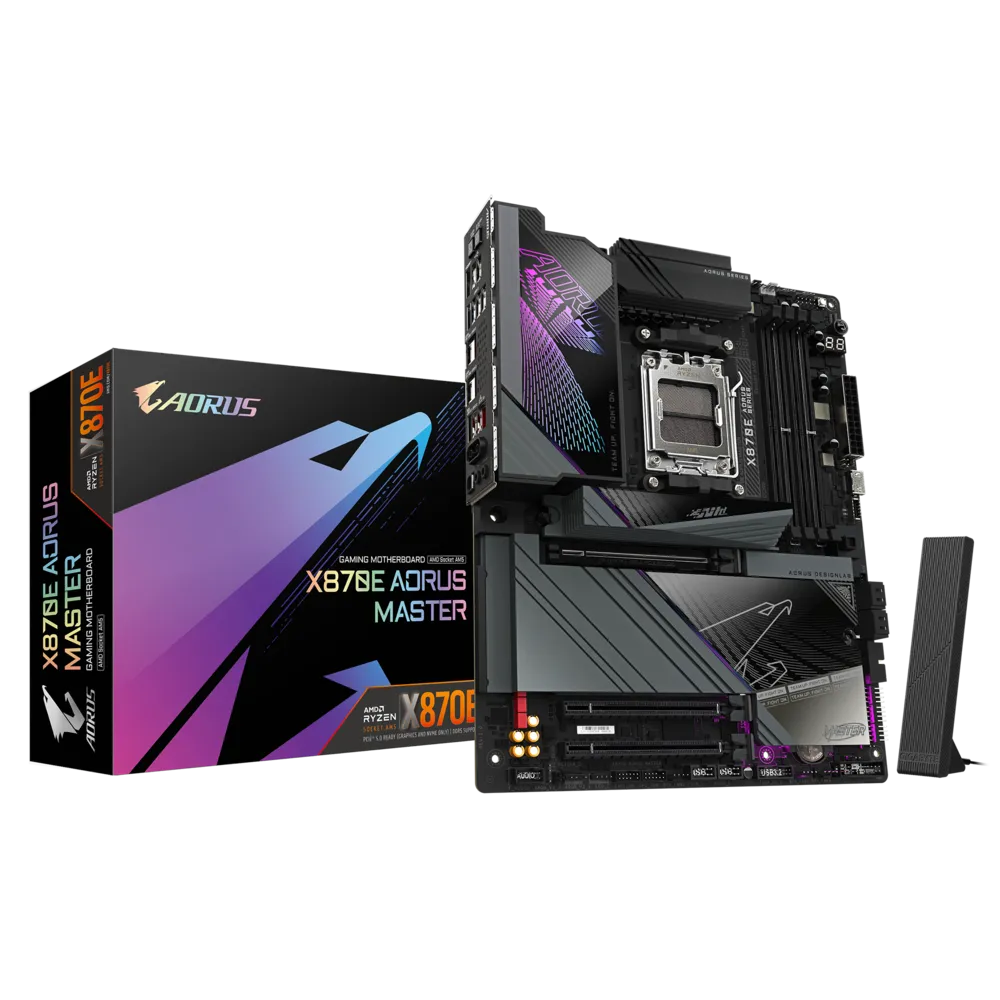

Чипсет: AMD X870E

Форм фактор: ATX Form Factor; 30.5cm x 24.4cm

Wi-Fi: Qualcomm® Wi-Fi 7 QCNCM865;- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11be 320MHz wireless standard;(Actual data rate may vary depending on environment and equipment.);* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.);** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Тип памет: Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC and non-ECC Un-buffered DIMM memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Звук: Realtek® ALC1220 CODEC;* The back panel line out jack supports DSD audio.;Support for DTS:X® Ultra;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out

LAN: Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Графика: Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR.;Integrated Graphics Processor with AMD Radeon™ Graphics support;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support for native HDMI 2.1 TMDS compatible ports.;- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version.;(Graphics specifications may vary depending on CPU support.)

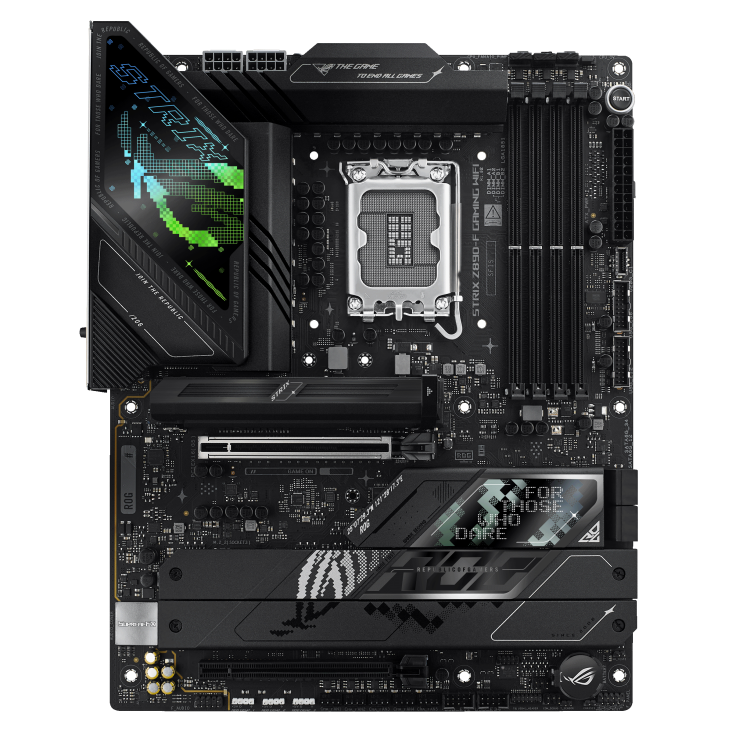

Чипсет: Intel® Z890 Chipset

Форм фактор: ATX Form Factor;30.5 cm x 24.4 cm

Wi-Fi: Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate;Bluetooth® v5.4

Тип памет: 4 x DIMM slots, max. 256GB, DDR5;Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP) memory module;Supports DIMM Flex;NitroPath DRAM Technology ;DIMM Fit;ASUS Enhanced Memory Profile III (AEMP III)

Звук: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel;Audio Features;- Audio Shielding;- Savitech SV3H712 AMP ;- Gold-plated audio jacks;- Rear optical S/PDIF out port ;- Premium audio capacitors;- Audio cover

LAN: 1 x Realtek 5Gb Ethernet;ASUS LANGuard

Графика: 1 x DisplayPort;1 x HDMI® port;2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs

Чипсет: AMD X870E

Форм фактор: ATX Form Factor;30.5 cm x 24.4 cm

Wi-Fi: Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.;Bluetooth® v5.4

Тип памет: 4 x DIMM slots, max. 256GB, DDR5;Supports up to;8000+MT/s(OC) with Ryzen™ 9000 Series Processors,;8400+MT/s(OC) with Ryzen™ 8000 Series Processors,;8000+MT/s(OC) with Ryzen™ 7000 Series Processors,;ECC and Non-ECC Un-buffered DIMM*;Dual Channel Memory Architecture ;Supports AMD EXTended Profiles for Overclocking (EXPO™);NitroPath DRAM Technology;ASUS Enhanced Memory Profile (AEMP)

Звук: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback;Audio Features ;- Audio Shielding- Savitech SV3H712 AMP;- Gold-plated audio jacks;- Rear optical S/PDIF out port ;- Premium audio capacitors;- Audio cover;* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

LAN: 1 x Realtek 5Gb Ethernet;ASUS LANGuard

Графика: 1 x HDMI™ port;2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Сокет: Socket AM5

Чипсет: AMD X870E

Форм фактор: ATX, 243.84mmx304.8mm

Wi-Fi: Wi-Fi 7 Solution; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.; ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Тип памет: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking:; • 1DPC 1R Max speed up to 8400+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6400+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; • The DIMM slots on this motherboard only have single-sided latches.; • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Звук: Realtek® ALC4080 Codec; 7.1-Channel USB High-Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel; Supports S/PDIF output

LAN: 1x Realtek® 8126 5G LAN; 1x Realtek® 8125 2.5G LAN

Чипсет: AMD X870E

Форм фактор: ATX Form Factor;30.5 cm x 24.4 cm

Wi-Fi: Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927);2x2 Wi-Fi 7 (802.11be) ;Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 320MHz bandwidth;Bluetooth® v5.4

Тип памет: 2 x DIMM slots, max. 128GB, DDR5 ;Supports up to;8200+MT/s(OC) with Ryzen™ 9000 Series Processors,;9600+MT/s(OC) with Ryzen™ 8000 Series Processors;8000+MT/s(OC) with Ryzen™ 7000 Series Processors,;ECC and Non-ECC, Un-buffered Memory*;Dual channel memory architecture ;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP)

Звук: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel";Audio Features ;- SupremeFX Shielding Technology;- Savitech SV3H712 AMP;- Gold-plated audio jacks;- Rear optical S/PDIF out port;- Premium audio capacitors;- Audio cover;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

LAN: 1 x Realtek 5Gb Ethernet;ASUS LANGuard

Графика: 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*;Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.;VGA resolution support depends on processors' or graphic cards' resolution.;*Supports max. 4K@60Hz as specified in DisplayPort 1.4a

Чипсет: Intel® Z890 Chipset

Форм фактор: E-ATX Form Factor;30.5 cm x 27.7 cm

Wi-Fi: Intel® Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate;Bluetooth® v5.4

Тип памет: 4 x DIMM slots, max. 256GB, DDR5;Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III (AEMP III);Supports DIMM Flex;DIMM Fit;NitroPath DRAM Technology

Звук: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082;- Impedance sense for front and rear headphone outputs;- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking;- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input;- Supports up to 32-Bit/384 kHz playback on front panel;Audio Features ;- SupremeFX Shielding Technology;- ESS® ES9219 QUAD DAC;- LED-illuminated audio jacks;- Rear optical S/PDIF out port;- Premium audio capacitors;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

LAN: 1 x Intel® 2.5Gb Ethernet;1 x Marvell® AQtion 10Gb Ethernet;ASUS LANGuard  

Графика: 1 x HDMITM port;2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs
