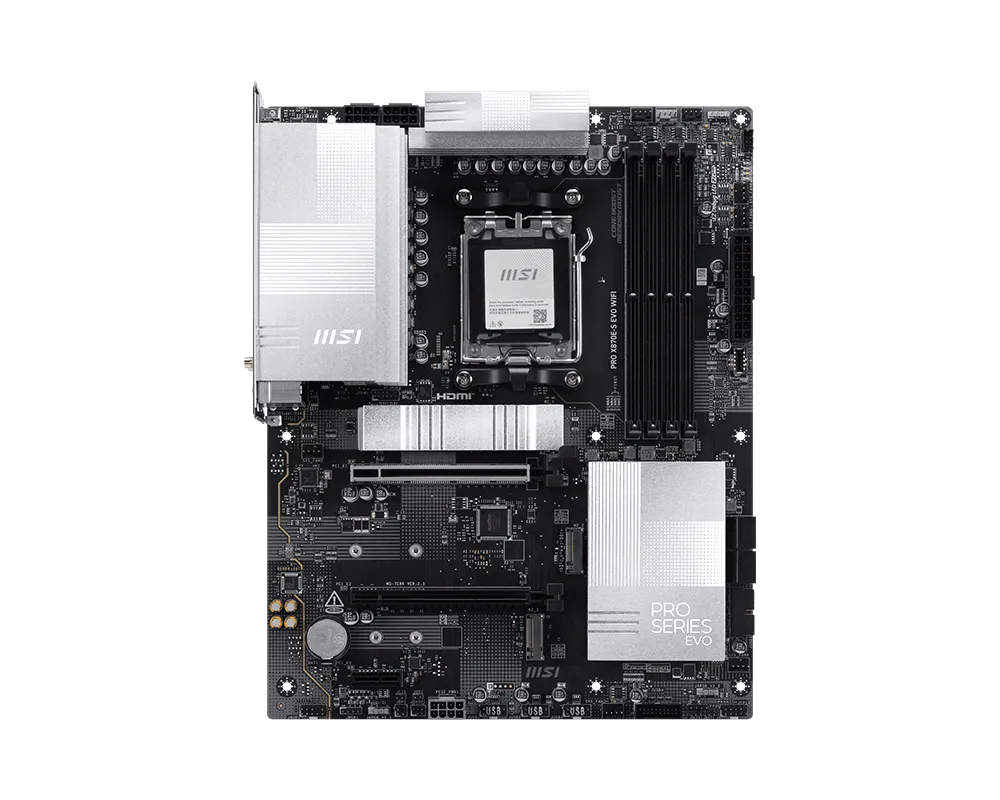

ДЪННИ ПЛАТКИ

Сокет: Socket AM5

Чипсет: AMD X870E

Форм фактор: ATX, 304.8mmx243.84mm

Wi-Fi: Wi-Fi 7; The Wireless module is pre-installed in the M.2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax/ be; * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

Тип памет: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB; Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s; Ryzen™ 9000 Series Processors max. overclocking:; • 1DPC 1R Max speed up to 8200+ MT/s; • 1DPC 2R Max speed up to 6400+ MT/s; • 2DPC 1R Max speed up to 6400+ MT/s; • 2DPC 2R Max speed up to 6000+ MT/s; Supports AMD POR Speed and JEDEC Speed; Supports Memory Overclocking and AMD EXPOTM; Supports Dual-Channel mode; Supports Non-ECC, Un-buffered memory; Supports CUDIMM, Clock Driver bypass mode only*; * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.; • The DIMM slots on this motherboard only have single-sided latch.; • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Звук: Realtek® ALC897; 7.1-Channel High Definition Audio

LAN: Realtek® 8126VB 5G LAN

Чипсет: AMD B850

Сокет: AM5

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Wi-Fi: Bluetooth v5.4, Intel® Wi-Fi 7 (802.11be)

Тип памет: DDR5

Поддържани процесори: 7-мо Поколение AMD процесори, 8-мо Поколение AMD процесори, 9-то Поколение AMD процесори

Чипсет: AMD X870

Форм фактор: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;8 Layer PCB

Wi-Fi: 802.11be 2x2 Wi-Fi 7 Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe/be;Supports 2.4GHz/5GHz/6GHz frequency band;Supports 160MHz channel bandwidth with 6GHz frequency band;1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.4;Supports MU-MIMO

Тип памет: Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);Max. capacity of system memory: 256GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Звук: 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec);Individual PCB Layers for R/L Audio Channel;Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets);Nahimic Audio

LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Killer E3100G;Supports Killer LAN Software

Графика: Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

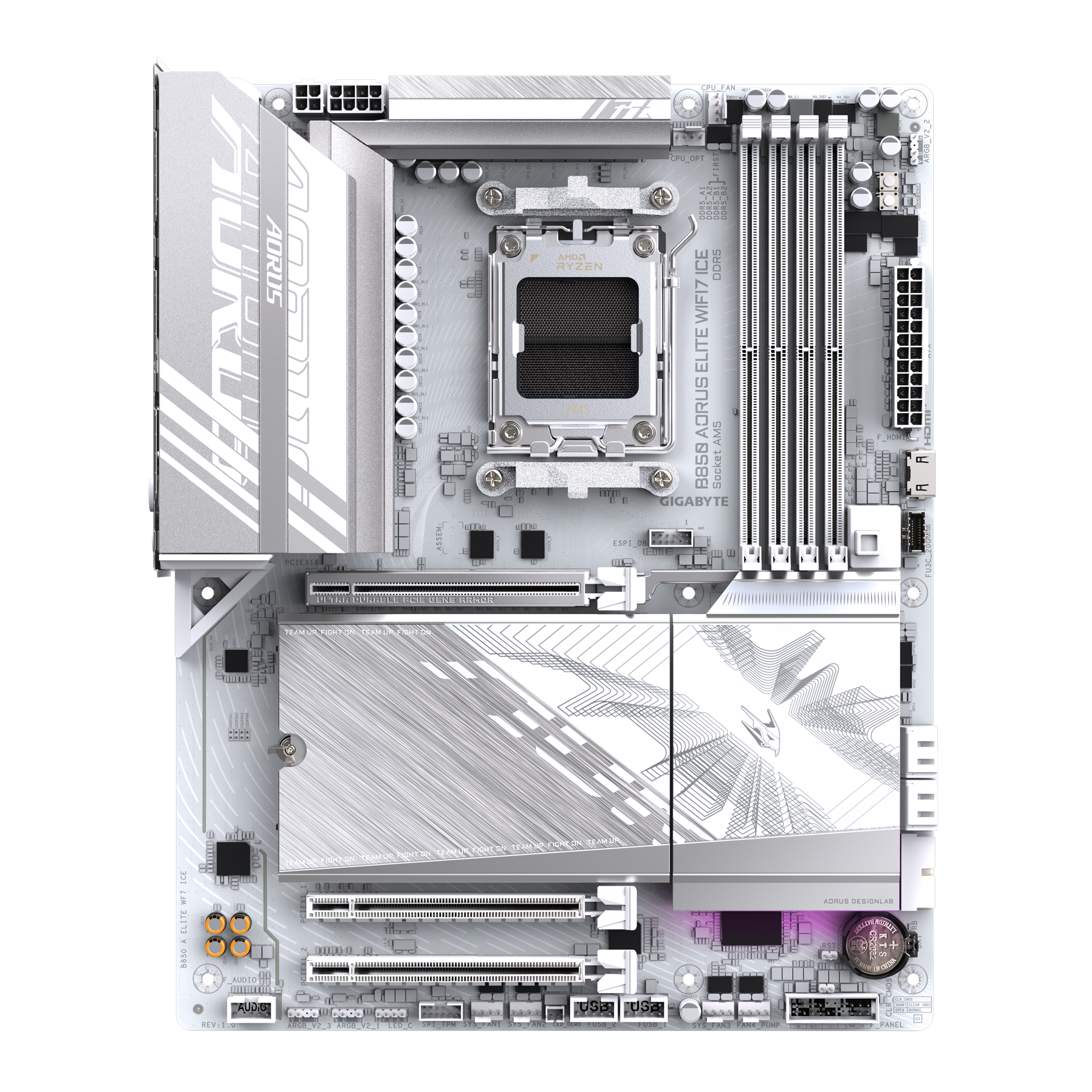

Чипсет: AMD B850

Форм фактор: ATX Form Factor; 30.5cm x 24.4cm

Wi-Fi: Realtek® Wi-Fi 7 RTL8922AE;- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.);* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.);** Wi-Fi 7 channels on 6 GHz band availability depends on individual country`s regulations

Тип памет: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Звук: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.;Support for S/PDIF Out

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Графика: Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 1.4 version and HDR.;- 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version

Чипсет: Intel Z790

Форм фактор: ATX 243.84mmx304.8mm

Тип памет: 4x DDR5, Maximum Memory Capacity 192GB; Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz; • 1DPC 2R Max speed up to 6600+ MHz; • 2DPC 1R Max speed up to 6400+ MHz; • 2DPC 2R Max speed up to 5600+ MHz; Supports Intel® XMP3.0 OC; Supports Dual-Controller Dual-Channel mode; Supports non-ECC, un-buffered memory

Звук: Realtek® ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports S/PDIF output; Supports up to 32-Bit/384 kHz playback on front panel

LAN: Intel® 2.5Gbps LAN

Графика: 1x HDMI™; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 8K 60Hz*

ОС: Support for Windows® 11 64-bit, Windows® 10 64-bit

Чипсет: Intel® Z890 Express Chipset

Форм фактор: Micro ATX Form Factor; 24.4cm x 24.4cm

Wi-Fi: MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard;Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard

Тип памет: Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.;Support for DDR5 6400/5600 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules;Support CUDIMM memory module

Звук: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;Support for S/PDIF Out

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Графика: Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version;- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version;- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz;* Support for HDMI 1.4 version;Support for up to 3 displays at the same time

Чипсет: AMD B850

Сокет: AM5

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Wi-Fi: Bluetooth v5.4, Intel® Wi-Fi 7 (802.11be)

Тип памет: DDR5

Поддържани процесори: 7-мо Поколение AMD процесори, 8-мо Поколение AMD процесори, 9-то Поколение AMD процесори

Чипсет: AMD X870

Сокет: AM5

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Wi-Fi: 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4

Тип памет: DDR5

Поддържани процесори: 7-мо Поколение AMD процесори, 8-мо Поколение AMD процесори, 9-то Поколение AMD процесори

Чипсет: AMD X870

Форм фактор: ATX Form Factor; 30.5cm x 24.4cm

Wi-Fi: Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard;(Actual data rate may vary depending on environment and equipment.);* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.);** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Тип памет: Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules;(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Звук: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Графика: Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR.;Integrated Graphics Processor with AMD Radeon™ Graphics support;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support native HDMI 2.1 TMDS compatible ports.;(Graphics specifications may vary depending on CPU support.)

Чипсет: Intel Z790

Сокет: 1700

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Тип памет: DDR5

Поддържани процесори: Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Максимален капацитет поддържана памет: 128 GB

Чипсет: Intel Z890

Сокет: 1851

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Wi-Fi: 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4

Тип памет: DDR5

Поддържани процесори: Intel® Core™ Ultra Процесори (Серия 2)

Чипсет: Intel® B860 Chipset

Форм фактор: mATX, 24.4 cm x 24.4 cm

Wi-Fi: Wi-Fi 7 2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

Тип памет: 4 x DIMM slots, max. 256GB, DDR5;Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual Channel Memory Architecture DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(AEMPIII)

Звук: Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Rear optical S/PDIF out port;- Premium audio capacitors;- Dedicated audio PCB layers

LAN: 1 x Realtek 2.5Gb Ethernet;TUF LANGuard

Графика: 1 x DisplayPort;1 x HDMI™ port;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Чипсет: AMD B850 Chipset

Форм фактор: ATX Form Factor;30.5 cm x 24.4 cm

Wi-Fi: Wi-Fi 6E;2x2 Wi-Fi 6E (802.11ax);Supports 2.4/5/6GHz frequency band;Bluetooth® v5.3

Тип памет: 4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP)

Звук: Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

LAN: 1 x Realtek 2.5Gb Ethernet;TUF LANGuard

Графика: 1 x DisplayPort;1 x HDMI™ port

Чипсет: AMD X870

Сокет: AM5

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Wi-Fi: 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4

Тип памет: DDR5

Поддържани процесори: 7-мо Поколение AMD процесори, 8-мо Поколение AMD процесори, 9-то Поколение AMD процесори

Чипсет: Intel® Z890

Форм фактор: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;2oz Copper PCB

Wi-Fi: 802.11be 2x2 Wi-Fi 7 Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe/be;Supports 2.4GHz/5GHz/6GHz frequency band;Supports 320MHz channel bandwidth with 6GHz frequency band;1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.4;Supports MU-MIMO

Тип памет: Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC);Supports Clocked Unbuffered DIMM (CUDIMM);Max. capacity of system memory: 256GB;Supports Intel® Extreme Memory Profile (XMP) 3.0x

Звук: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);Impedance Sensing on Rear Out port;Individual PCB Layers for R/L Audio Channel;Nahimic Audio

LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Killer E3100G;Supports Killer LAN Software

Графика: Intel® Xe LPG Graphics Architecture;1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

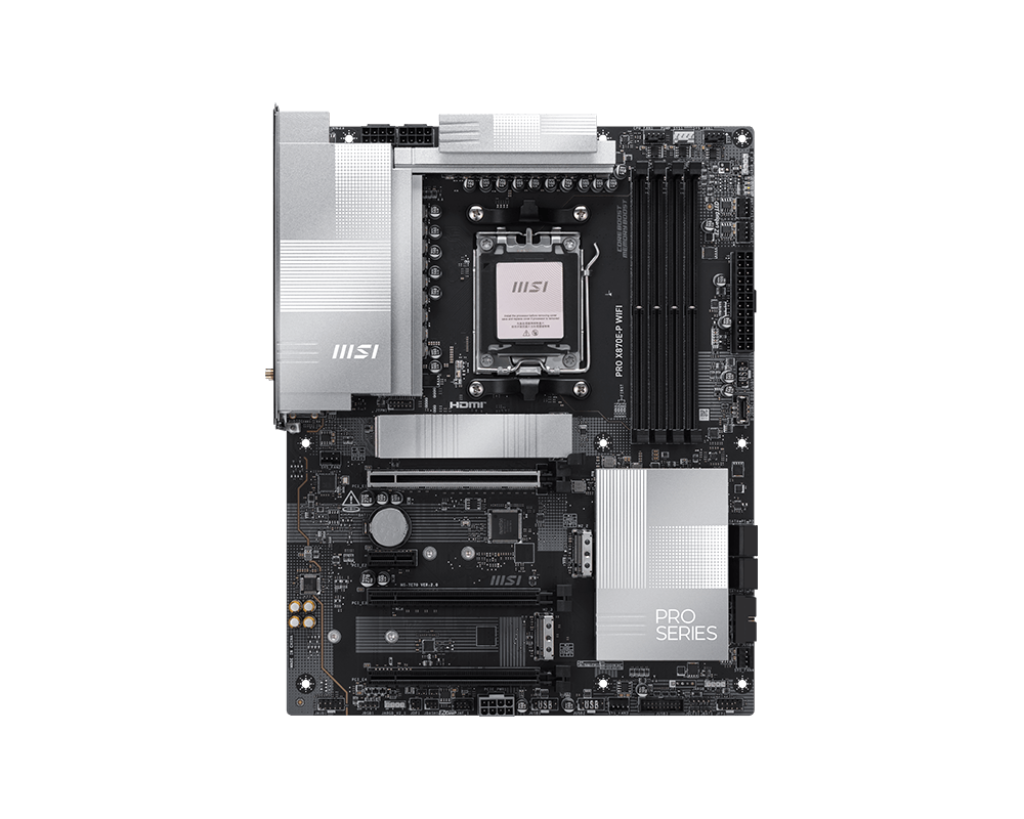

Чипсет: AMD X870E

Форм фактор: ATX 243.84mmx304.8mm

Wi-Fi: Wi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be;Supports Bluetooth® 5.4, MLO, 4KQAM

Тип памет: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen™ 9000 Series Processors max. overclocking frequency:;• 1DPC 1R Max speed up to 8200+ MT/s;• 1DPC 2R Max speed up to 6400+ MT/s;• 2DPC 1R Max speed up to 6400+ MT/s;• 2DPC 2R Max speed up to 6000+ MT/s;Supports AMD POR Speed and JEDEC Speed;Supports Memory Overclocking and AMD EXPOTM;Supports Dual-Channel mode;Supports Non-ECC, Un-buffered memory;Supports CUDIMM, Clock Driver bypass mode only

Звук: Realtek® ALC897;7.1-Channel High Definition Audio

LAN: Realtek® 8126VB 5G LAN

Графика: 1x HDMI™;Support HDMITM 2.1, maximum resolution of 4K 60Hz;1x Type-C DisplayPort;USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz

Чипсет: AMD X870

Сокет: AM5

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Wi-Fi: 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4

Тип памет: DDR5

Поддържани процесори: 7-мо Поколение AMD процесори, 8-мо Поколение AMD процесори, 9-то Поколение AMD процесори

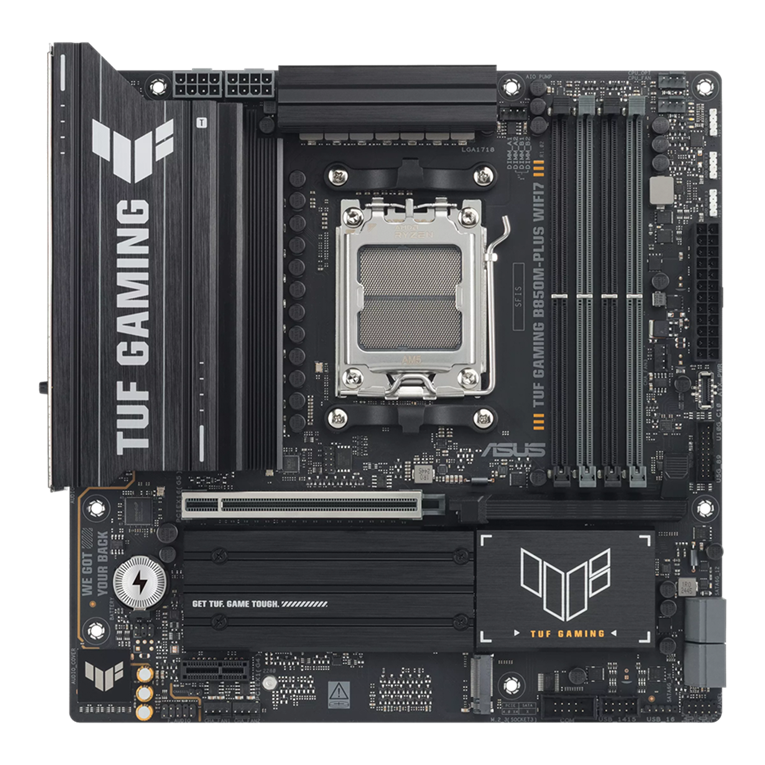

Чипсет: AMD B850 Chipset

Форм фактор: micro-ATX Form Factor 24.4 cm x 24.4 cm

Wi-Fi: Wi-Fi 7 (MediaTek MT7925);2x2 Wi-Fi 7* (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth;Bluetooth® v5.4

Тип памет: 4 x DIMM slots, max. 256GB, DDR5;Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM;Dual channel memory architecture;Supports AMD Extended Profiles for Overclocking (EXPO™);ASUS Enhanced Memory Profile (AEMP)

Звук: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in);- Supports up to 32-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;- Audio cover;- Unique de-pop circuit

LAN: 1 x Realtek 2.5Gb Ethernet;TUF LANGuard

Графика: 1 x DisplayPort;1 x HDMI™ port

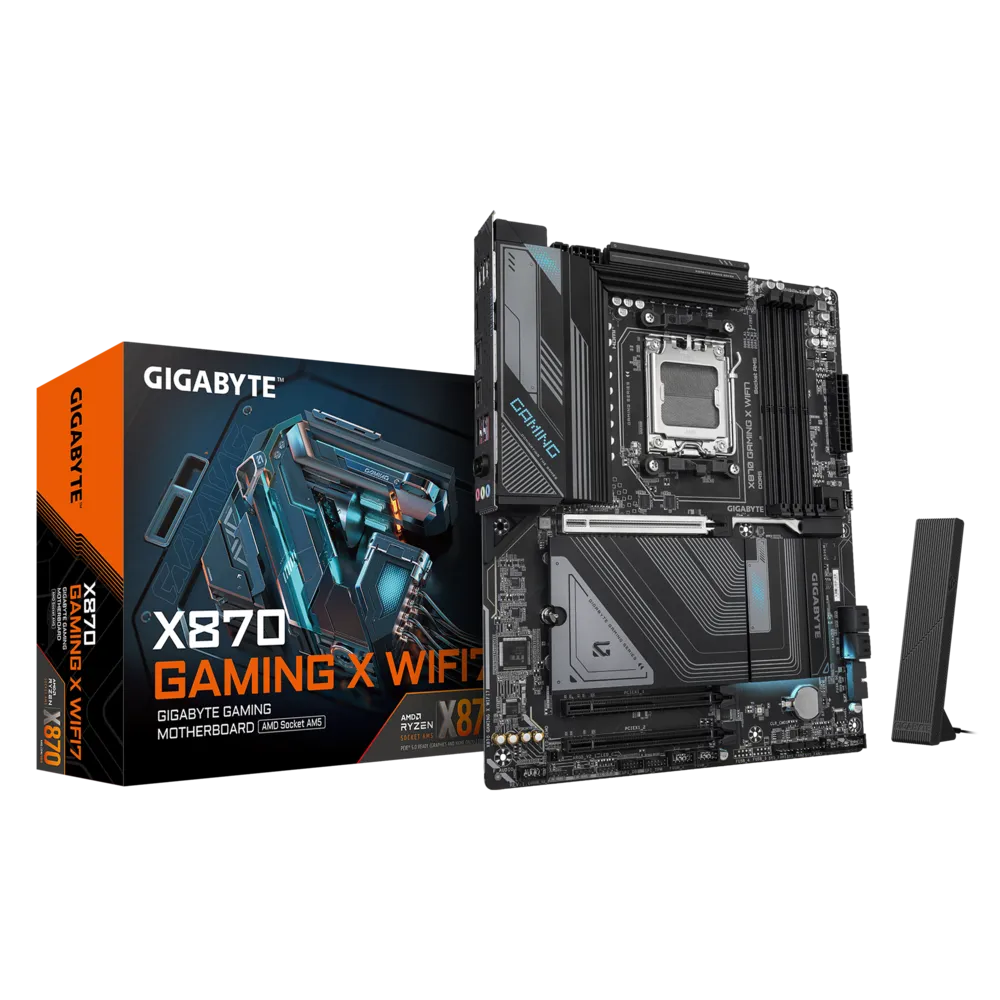

Чипсет: AMD X870

Форм фактор: ATX Form Factor; 30.5cm x 24.4cm

Wi-Fi: MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard;Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1);- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 160MHz wireless standard

Тип памет: Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Звук: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Графика: Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:;- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz;* Support for DisplayPort 1.4 version and HDR.;Integrated Graphics Processor with AMD Radeon™ Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;** Support native HDMI 2.1 TMDS compatible ports.

Чипсет: Intel Z890

Сокет: 1851

Форм фактор: ATX - 30.5 x 24.4 cm

Слотове за памет: 4

Wi-Fi: 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4

Тип памет: DDR5

Поддържани процесори: Intel® Core™ Ultra Процесори (Серия 2)
