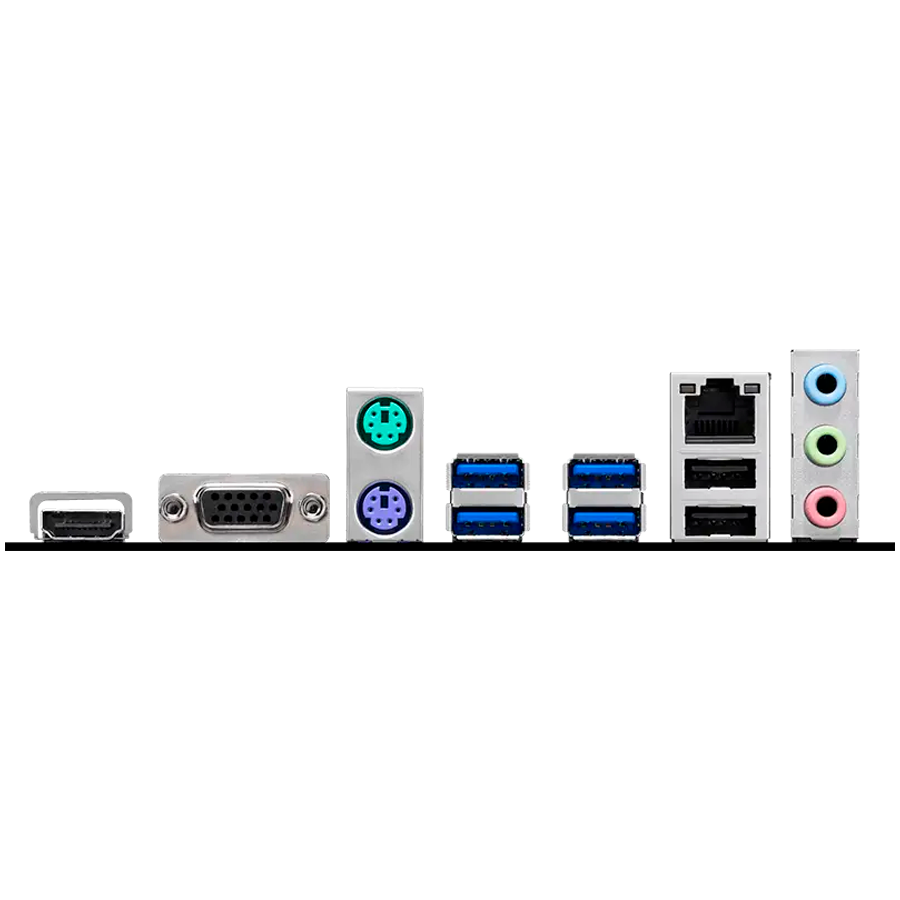

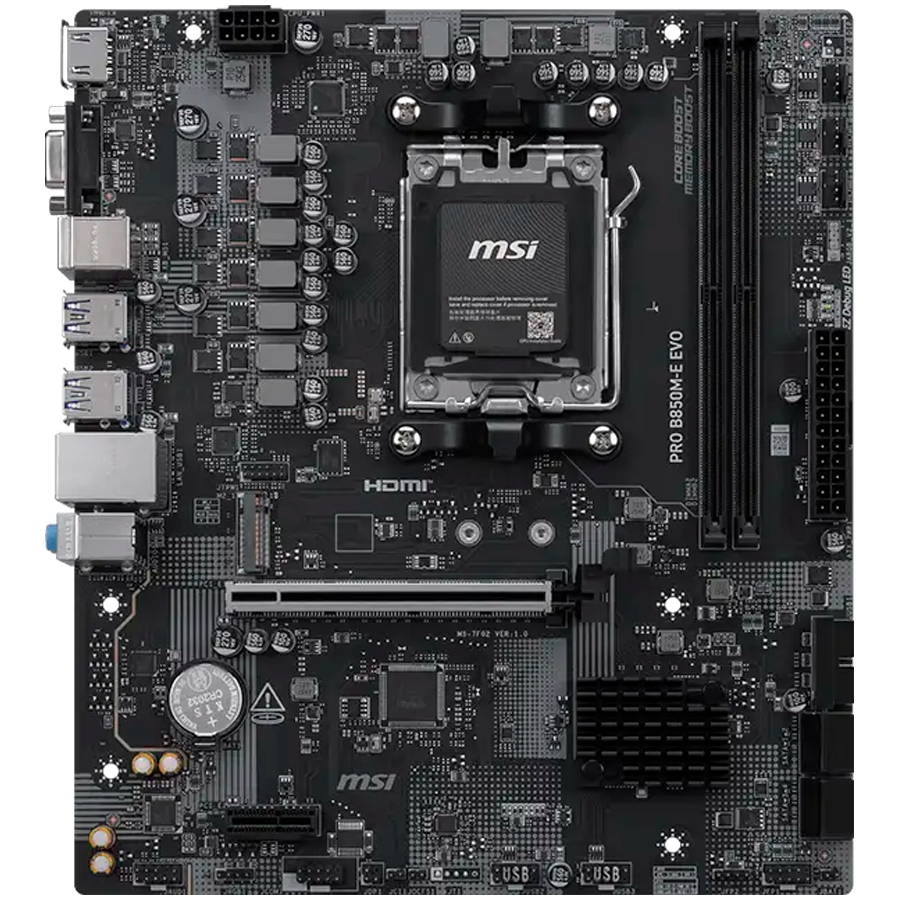

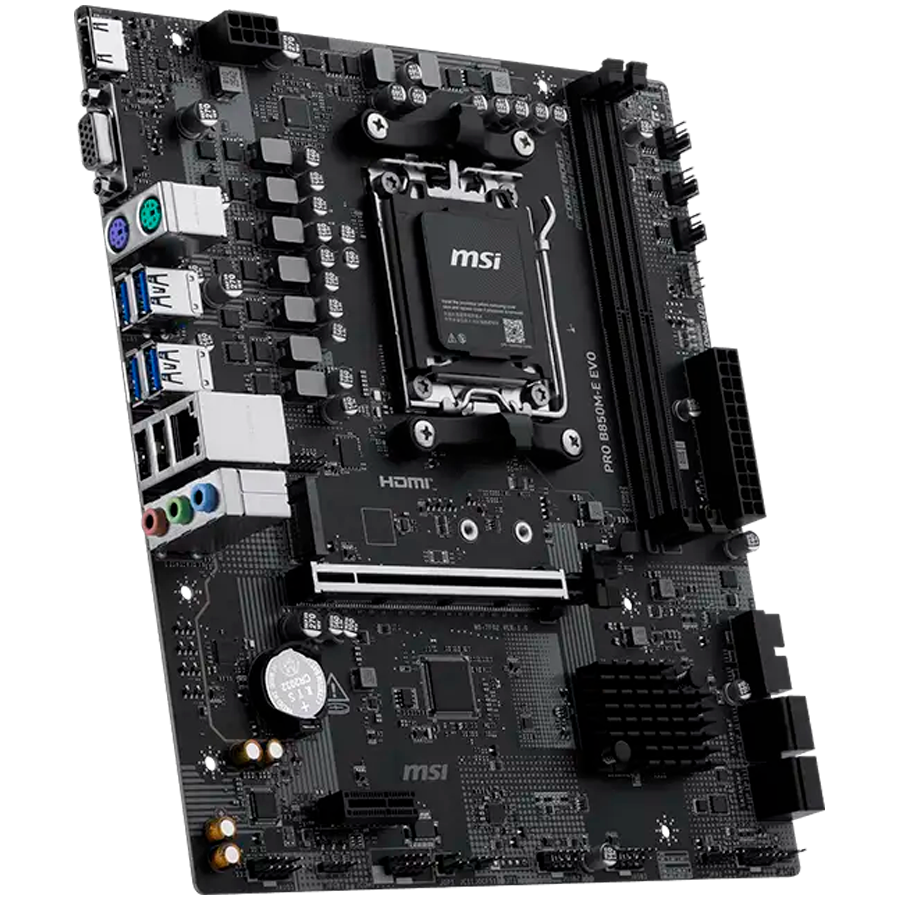

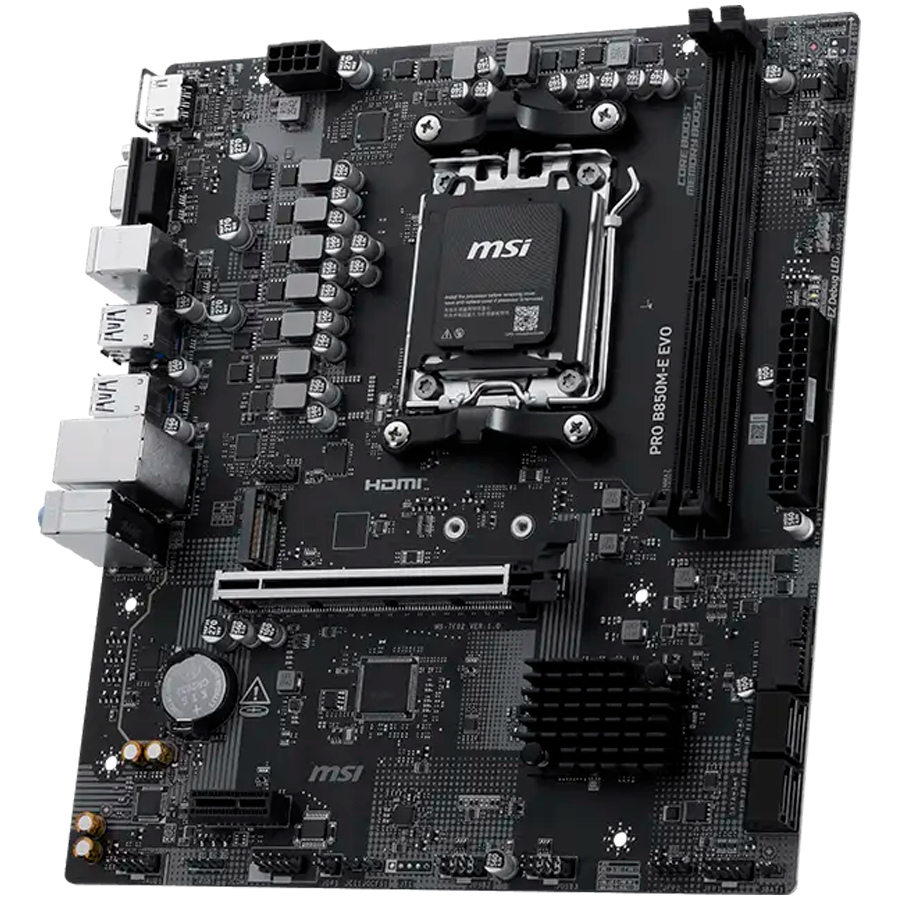

MSI PRO B850M-E EVO, mATX, Socket AM5, 2x DDR5 Dual Channel up to 8200(OC)MHz, 1x PCIe x16 slot, 1x M.2 slot, 4x USB 5Gbps, 2x USB 2.0, HDMI, VGA, 7.1 HD Audio, 2.5G LAN, 3Y

Чипсет: Intel® H610 Chipset

Форм фактор: mATX Form Factor, 22.6 cm x 19.5 cm

Тип памет: 2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP)

Звук: Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

LAN: 1 x Realtek 1Gb Ethernet

Графика: 1 x DisplayPort;1 x VGA port;1 x HDMITM port

USB: Rear USB (Total 4 ports);2 x USB 3.2 Gen 1(5G) ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 6 ports);1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports

Чипсет: AMD A520 Chipset

Форм фактор: Micro-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Тип памет: 2x DDR4 memory slots, support up to 64GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory

Звук: Realtek® ALC892/ALC897 Codec; 7.1-Channel High Definition Audio

LAN: 1x Realtek® RTL8111H Gigabit LAN controller

Графика: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12 ; 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1; Maximum shared memory of 16 GB

Конектори: 1x 24-pin ATX main power connector; 1x 4-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1xTPM module connector; 1x Clear CMOS jumper

Чипсет: - AMD A520

Форм фактор: - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design

Тип памет: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - Max. capacity of system memory: 64GB**; - Supports Extreme Memory Profile (XMP) memory modules; - 15? Gold Contact in DIMM Slots

Звук: - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection

LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

Графика: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output: support D-Sub and HDMI ports by independent display controllers; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 Port; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; - Supports Microsoft® PlayReady

ОС: - Microsoft® Windows® 10 64-bit

Чипсет: Intel H610

Сокет: 1700

Форм фактор: Micro ATX - 22.0 x 19.3 cm

Слотове за памет: 2

Тип памет: DDR4

Поддържани процесори: 12-то Поколение Intel, 13-то Поколение Intel, 14-то Поколение Intel

Максимален капацитет поддържана памет: 64 GB

Чипсет: AMD A520

Сокет: Socket AM4

Форм фактор: Micro ATX

Слотове за памет: 2

Тип памет: DDR4 SDRAM

Разположение на устройството: Вграден

LAN: 1 (RJ-45)

Чипсет: AMD® A520

Форм фактор: Micro-ATX, 230x197mm

Тип памет: 2x DIMMS, Dual Channel DDR4, Maximum Memory Capacity 64GB (2x 32GB)

Звук: Realtek® ALC897 HD Audio, 5.1 Channel

LAN: Realtek® RTL8111M Gigabit Ethernet

USB: 1x USB 3.2 Gen1 (2 x Type-A);1x USB 2.0 (2 x Type-A)

ОС: Windows 10/11 - 64 Bit

Чипсет: Intel H610

Сокет: 1700

Форм фактор: Micro ATX - 22.0 x 19.3 cm

Слотове за памет: 2

Wi-Fi: Не

Тип памет: DDR5

Поддържани процесори: 12-то Поколение Intel, 13-то Поколение Intel

Чипсет: AMD A520

Форм фактор: Micro ATX Form Factor; 24.4cm x 24.4cm

Тип памет: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules

Звук: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Графика: Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz; * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; Maximum shared memory of 16 GB

ОС: Support for Windows 11 64-bit; Support for Windows 10 64-bit

Чипсет: Intel® H610 Chipset

Форм фактор: M-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Тип памет: 2x DDR4 memory slots, support up to 64GB 1; Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory

Звук: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio

LAN: 1x Realtek® RTL8111H 1Gbps LAN controller

Графика: 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2

Конектори: 4x SATA 6Gb/s ports (From H610 chipset); 1x M.2 slot (Key M) (from CPU); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; 1x 24-pin ATX main power connector; 1x 8-pin +12V power connector; 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From Hub-GL850G); Supports additional 4 USB 2.0 ports; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Serial port connector; 1x Clear CMOS jumper

Чипсет: AMD A520

Сокет: AM4

Слотове за памет: 4

Тип памет: DDR4

Поддържани процесори: 3-то Поколение AMD, 5-то Поколение AMD

Максимален капацитет поддържана памет: 128 GB

Максимална честота памет: 4733(OC) MHz

Чипсет: AMD A520

Форм фактор: Micro ATX Form Factor; 24.4cm x 20.5cm

Тип памет: 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules

Звук: Realtek® ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Графика: Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time; Maximum shared memory of 16 GB

ОС: Support for Windows 10 64-bit

Чипсет: AMD A520

Сокет: Socket AM4

Форм фактор: Micro ATX

Слотове за памет: 2

Тип памет: DDR4 SDRAM

Разположение на устройството: Вграден

LAN: 1 (RJ-45)

Чипсет: Intel H610

Сокет: 1700

Форм фактор: Micro ATX - 22.0 x 19.3 cm

Слотове за памет: 2

Wi-Fi: Не

Тип памет: DDR5

Поддържани процесори: 12-то Поколение Intel, 13-то Поколение Intel

Форм фактор: mATX Form Factor; 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Тип памет: 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)

Звук: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Dedicated audio PCB layers

LAN: 1 x Realtek 1Gb Ethernet

Графика: 1 x D-Sub port; 1 x HDMI® port**

ОС: Windows® 11 64-bit, Windows® 10 64-bit

Конектори: 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header

Чипсет: - AMD B550

Форм фактор: - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design

Тип памет: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - Max. capacity of system memory: 64GB**; - Supports Extreme Memory Profile (XMP) memory modules; - 15? Gold Contact in DIMM Slots*

Звук: - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection

LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

Графика: - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Three graphics output options: D-Sub, DVI-D and HDMI; - Supports Triple Monitor; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; - Supports Microsoft® PlayReady

ОС: - Microsoft® Windows® 10 64-bit

Сокет: 1151

Слотове за памет: 2

Wi-Fi: Не

Тип памет: DDR4

Поддържани процесори: 8-мо Поколение Intel, 9-то Поколение Intel

Максимален капацитет поддържана памет: 32 GB

Максимална честота памет: 2666 MHz

Чипсет: Intel H610

Сокет: Socket 1700

Форм фактор: Micro ATX

Слотове за памет: 2

Тип памет: DDR4 SDRAM

Разположение на устройството: Вграден

LAN: 1 (RJ-45)

Форм фактор: Micro ATX Form Factor; 22.3cm x 19.3cm

Тип памет: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE`s website for more information.)

Звук: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Графика: Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.

ОС: Support for Windows 11 64-bit; Support for Windows 10 64-bit

Конектори: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x RGB LED strip header; 1 x front panel header; 1 x front panel audio header; 1 x speaker header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; 1 x chassis intrusion header

Чипсет: Intel H610

Сокет: 1700

Форм фактор: Micro ATX - 22.3 x 19.3 cm

Слотове за памет: 2

Тип памет: DDR4

Поддържани процесори: 12-то Поколение Intel, 13-то Поколение Intel, 14-то Поколение Intel

Максимален капацитет поддържана памет: 64 GB

Чипсет: Intel H610

Форм фактор: mATX, 200mmx236.16mm

Тип памет: 2x DDR5, Maximum Memory Capacity 96GB;Memory Support DDR5 5600 MHz (by JEDEC & POR);Supports Intel® XMP 3.0 OC;Supports Dual-Controller Dual-Channel mode;Supports non-ECC, un-buffered memory

Звук: Realtek® ALC897 Codec;7.1-Channel High Definition Audio

LAN: Realtek® RTL8111H Gigabit LAN

Графика: 1x HDMI™;Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*;1x VGA;Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

USB: 4x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front)
