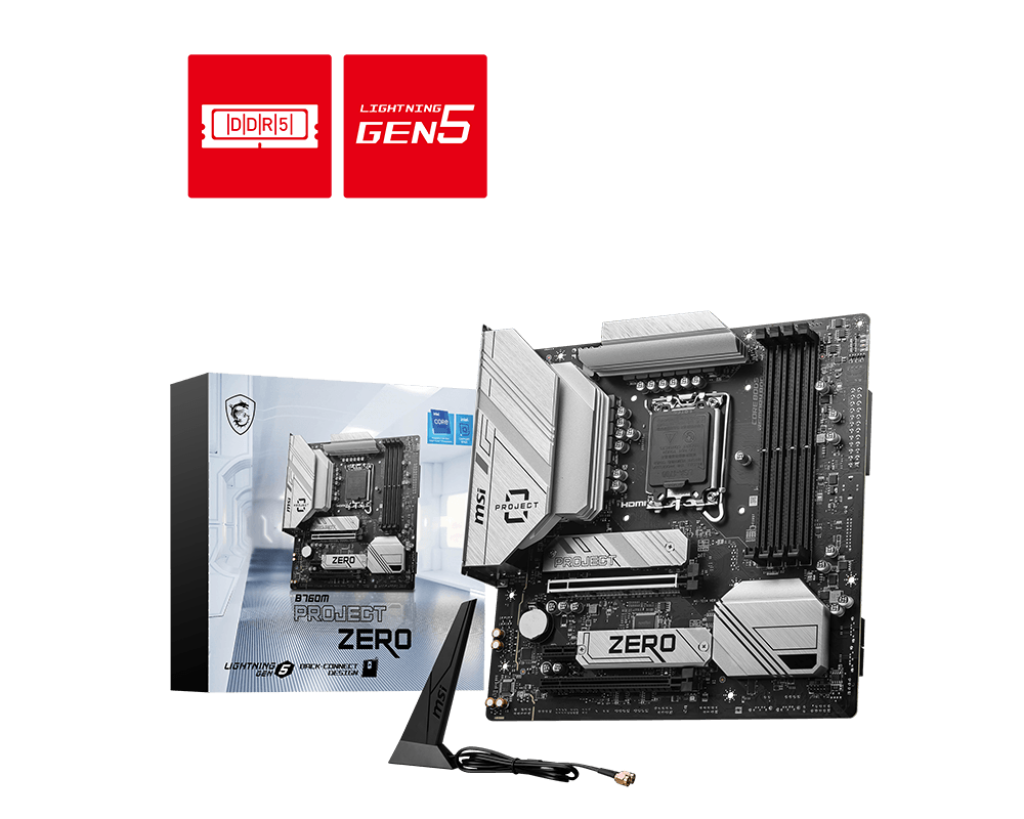

MSI B760M PROJECT ZERO
Код: 911-7E14-007
193.33 €
Цената е с ДДС
Доставка: 2 работни дни · безплатна до офис на Speedy
ДОБАВИ ЗА СРАВНЕНИЕ
Основни характеристики:
- Чипсет: Intel B760
- Форм фактор: mATX 243.84mmx243.84mm
- Wi-Fi: Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
- Тип памет: 4x DDR5, Maximum Memory Capacity 256GB; Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz; Max. overclocking frequency:; 1DPC 1R Max speed up to 7800+ MHz; 1DPC 2R Max speed up to 6600+ MHz; 2DPC 1R Max speed up to 6400+ MHz; 2DPC 2R Max speed up to 5600+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile
- Звук: Realtek® ALC897 Codec; 7.1-Channel High Performance Audio; Supports S/PDIF output
- LAN: Realtek® 2.5Gbps LAN
- Графика: 1x HDMI™; Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*; 1x DisplayPort; Support DP 1.4, maximum resolution of 4K 60Hz
Изображенията на някои продукти са илюстративни и могат да се различават от реалния им вид*
ТЕХНИЧЕСКИ ХАРАКТЕРИСТИКИ:
Чипсет
Intel B760
Форм фактор
mATX 243.84mmx243.84mm
Wi-Fi
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Тип памет
4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7800+ MHz
1DPC 2R Max speed up to 6600+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
Звук
Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
LAN
Realtek® 2.5Gbps LAN
Графика
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
Bluetooth
5.3
ОС
Support for Windows® 11 64-bit, Windows® 10 64-bit
Конектори
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
CPU's supported
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700
Expansion slots
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Rear panel I/O
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Гаранция
36 months
