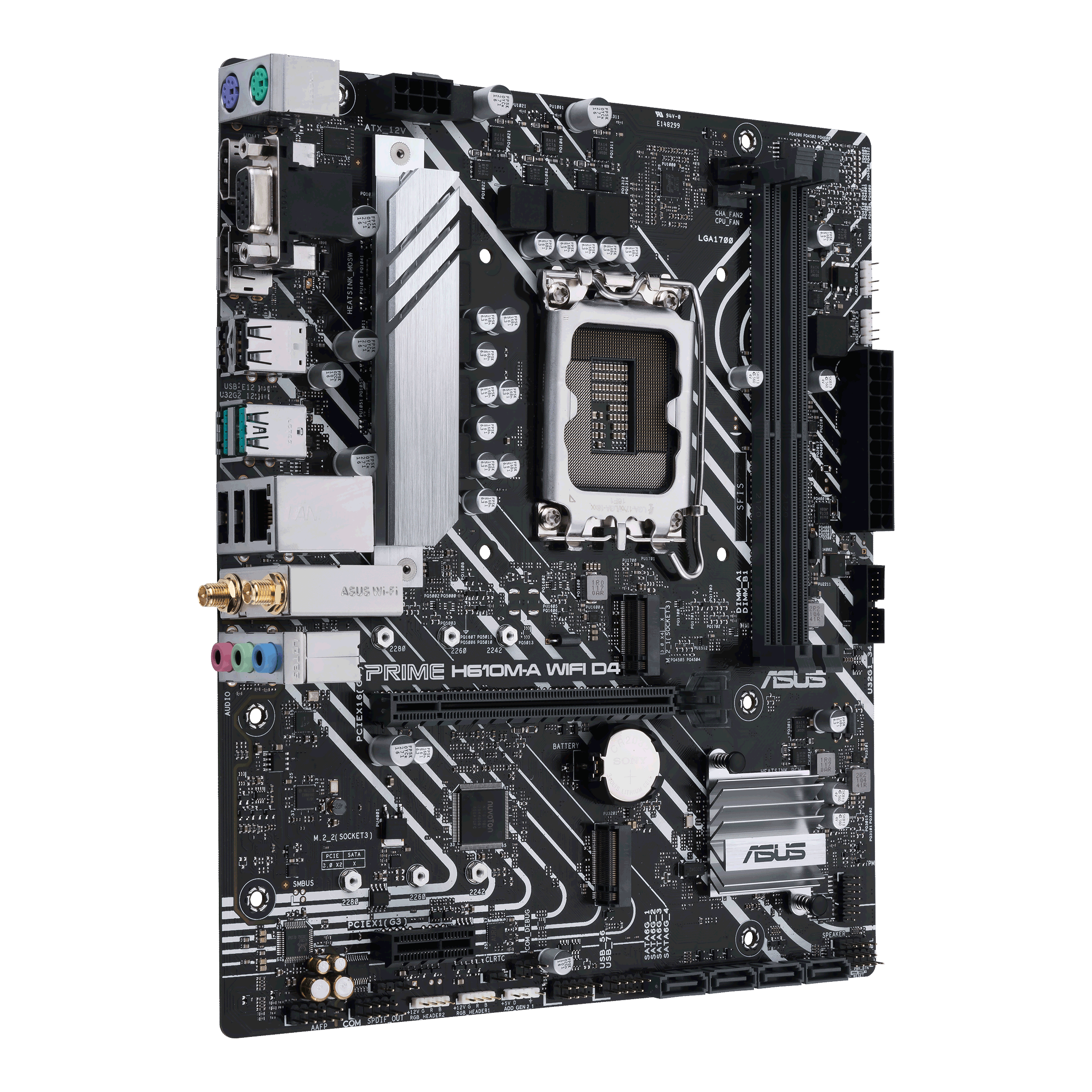

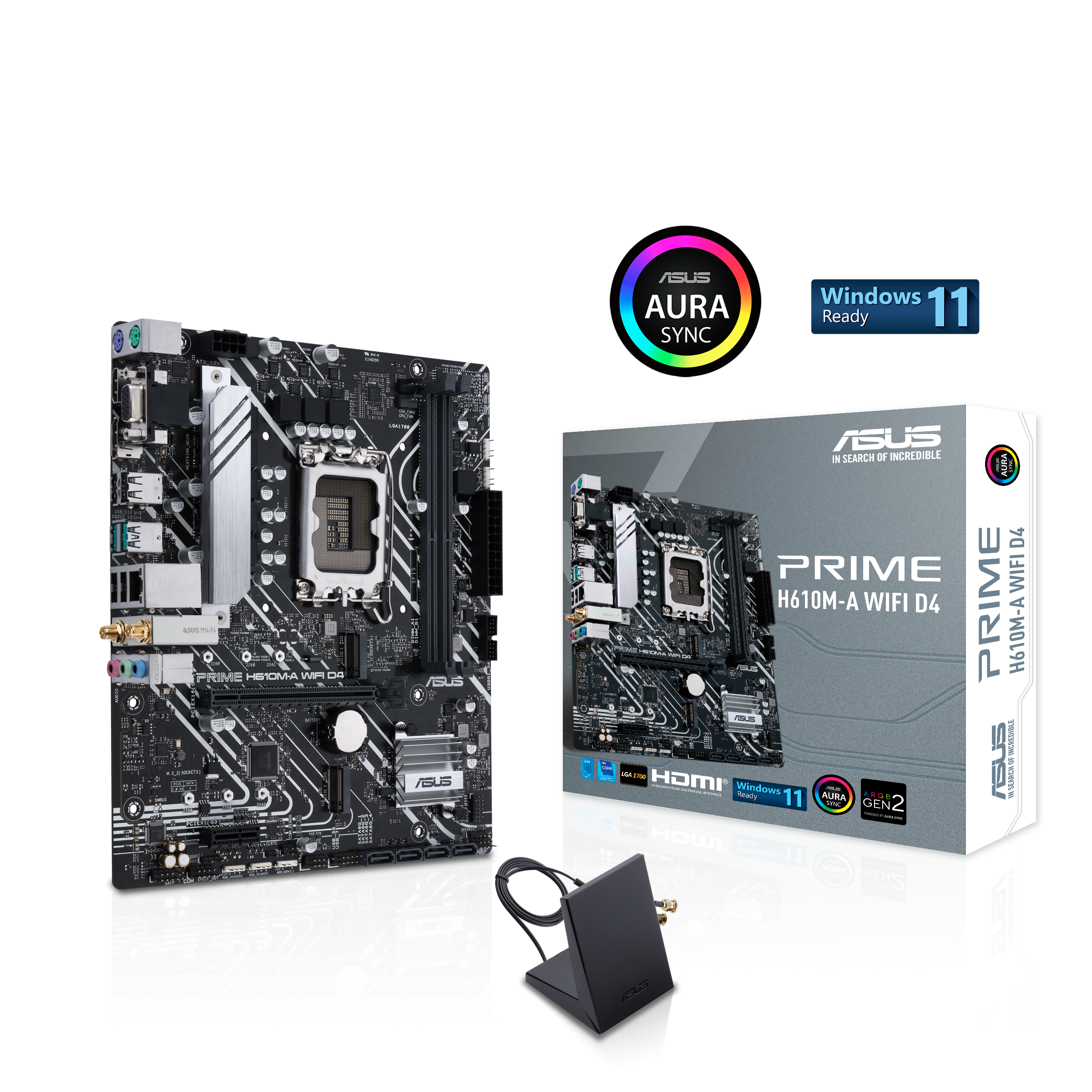

Дънна платка ASUS PRIME H610M-A WIFI D4, LGA 1700 mATX

Чипсет: Intel® H610 Chipset

Форм фактор: mATX Form Factor, 22.6 cm x 19.5 cm

Тип памет: 2 x DIMM, Max. 96GB, DDR5 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP)

Звук: Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output

LAN: 1 x Realtek 1Gb Ethernet

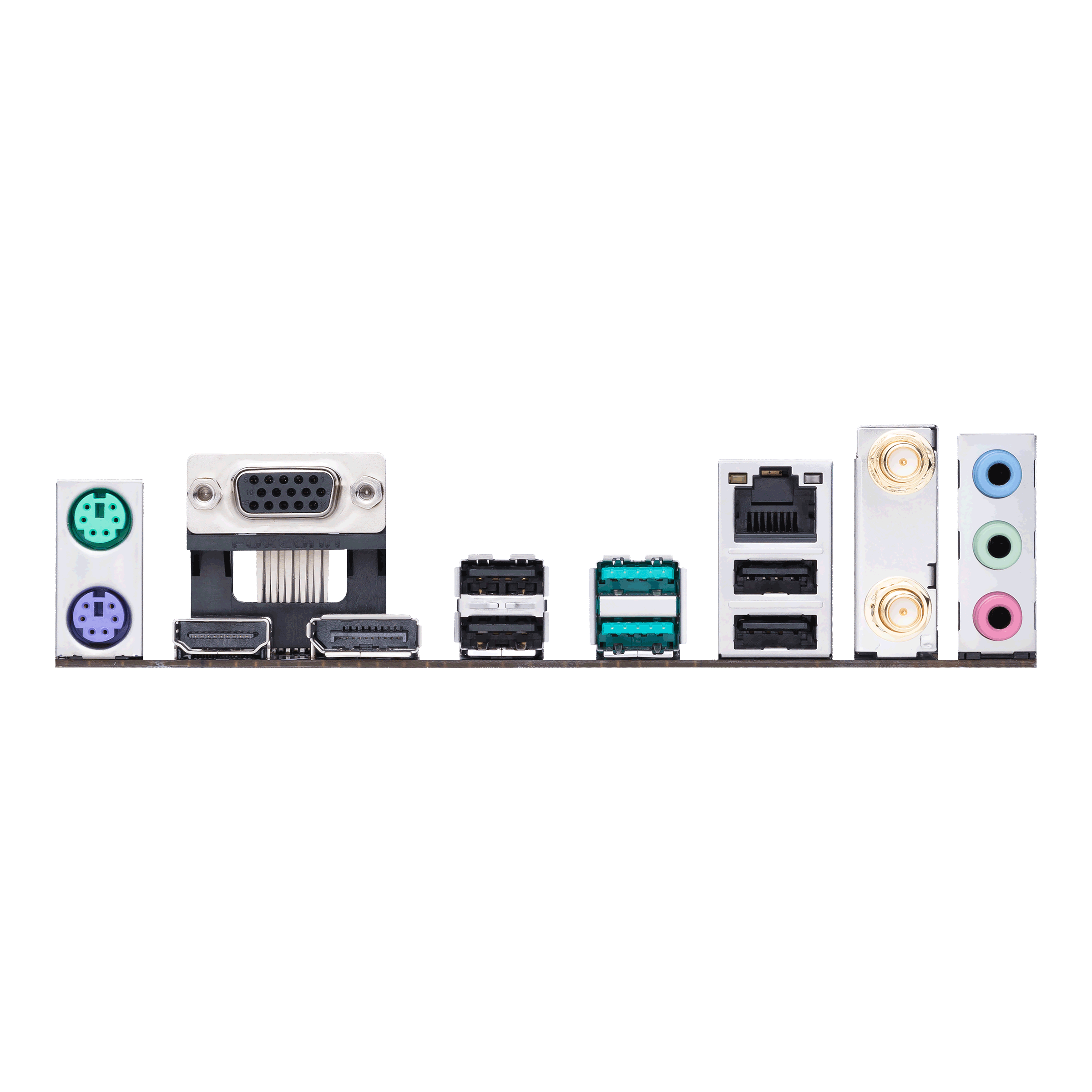

Графика: 1 x DisplayPort;1 x VGA port;1 x HDMITM port

USB: Rear USB (Total 4 ports);2 x USB 3.2 Gen 1(5G) ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 6 ports);1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports;2 x USB 2.0 headers support additional 4 USB 2.0 ports

Чипсет: AMD A520 Chipset

Форм фактор: Micro-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Тип памет: 2x DDR4 memory slots, support up to 64GB 1; Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC; Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE; 1DPC 1R max speed 4600 MHz; 1DPC 2R max speed 3866 MHz; Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode); Supports un-buffered memory

Звук: Realtek® ALC892/ALC897 Codec; 7.1-Channel High Definition Audio

LAN: 1x Realtek® RTL8111H Gigabit LAN controller

Графика: 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12 ; 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1; Maximum shared memory of 16 GB

Конектори: 1x 24-pin ATX main power connector; 1x 4-pin ATX 12V power connector; 4x SATA 6Gb/s connectors; 1x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1xTPM module connector; 1x Clear CMOS jumper

Чипсет: - AMD A520

Форм фактор: - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design

Тип памет: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - Max. capacity of system memory: 64GB**; - Supports Extreme Memory Profile (XMP) memory modules; - 15? Gold Contact in DIMM Slots

Звук: - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection

LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

Графика: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output: support D-Sub and HDMI ports by independent display controllers; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with HDMI 2.1 Port; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; - Supports Microsoft® PlayReady

ОС: - Microsoft® Windows® 10 64-bit

Чипсет: Intel H610

Сокет: 1700

Форм фактор: Micro ATX - 22.0 x 19.3 cm

Слотове за памет: 2

Тип памет: DDR4

Поддържани процесори: 12-то Поколение Intel, 13-то Поколение Intel, 14-то Поколение Intel

Максимален капацитет поддържана памет: 64 GB

Чипсет: AMD A520

Сокет: Socket AM4

Форм фактор: Micro ATX

Слотове за памет: 2

Тип памет: DDR4 SDRAM

Разположение на устройството: Вграден

LAN: 1 (RJ-45)

Чипсет: AMD® A520

Форм фактор: Micro-ATX, 230x197mm

Тип памет: 2x DIMMS, Dual Channel DDR4, Maximum Memory Capacity 64GB (2x 32GB)

Звук: Realtek® ALC897 HD Audio, 5.1 Channel

LAN: Realtek® RTL8111M Gigabit Ethernet

USB: 1x USB 3.2 Gen1 (2 x Type-A);1x USB 2.0 (2 x Type-A)

ОС: Windows 10/11 - 64 Bit

Чипсет: Intel H610

Сокет: 1700

Форм фактор: Micro ATX - 22.0 x 19.3 cm

Слотове за памет: 2

Wi-Fi: Не

Тип памет: DDR5

Поддържани процесори: 12-то Поколение Intel, 13-то Поколение Intel

Чипсет: AMD A520

Форм фактор: Micro ATX Form Factor; 24.4cm x 24.4cm

Тип памет: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules

Звук: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Графика: Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz; * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR.; Maximum shared memory of 16 GB

ОС: Support for Windows 11 64-bit; Support for Windows 10 64-bit

Чипсет: Intel® H610 Chipset

Форм фактор: M-ATX Form Factor; 9.3 in. x 7.9 in. (23.6 cm x 20 cm)

Тип памет: 2x DDR4 memory slots, support up to 64GB 1; Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR); Supports Dual-Channel mode; Supports non-ECC, un-buffered memory

Звук: Realtek® ALC897 Codec; 7.1-Channel High Definition Audio

LAN: 1x Realtek® RTL8111H 1Gbps LAN controller

Графика: 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2; 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2

Конектори: 4x SATA 6Gb/s ports (From H610 chipset); 1x M.2 slot (Key M) (from CPU); Supports up to PCIe 3.0 x4; Supports 2242/ 2260/ 2280 storage devices; 1x 24-pin ATX main power connector; 1x 8-pin +12V power connector; 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset); Supports additional 2 USB 3.2 Gen 1 5Gbps ports; 2x USB 2.0 Type-A connectors (From Hub-GL850G); Supports additional 4 USB 2.0 ports; 1x 4-pin CPU fan connector; 2x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Serial port connector; 1x Clear CMOS jumper

Чипсет: AMD A520

Сокет: AM4

Слотове за памет: 4

Тип памет: DDR4

Поддържани процесори: 3-то Поколение AMD, 5-то Поколение AMD

Максимален капацитет поддържана памет: 128 GB

Максимална честота памет: 4733(OC) MHz

Чипсет: AMD A520

Форм фактор: Micro ATX Form Factor; 24.4cm x 20.5cm

Тип памет: 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; 3rd Gen AMD Ryzen™ Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules

Звук: Realtek® ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)

Графика: Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time; Maximum shared memory of 16 GB

ОС: Support for Windows 10 64-bit

Чипсет: AMD A520

Сокет: Socket AM4

Форм фактор: Micro ATX

Слотове за памет: 2

Тип памет: DDR4 SDRAM

Разположение на устройството: Вграден

LAN: 1 (RJ-45)

Чипсет: Intel H610

Сокет: 1700

Форм фактор: Micro ATX - 22.0 x 19.3 cm

Слотове за памет: 2

Wi-Fi: Не

Тип памет: DDR5

Поддържани процесори: 12-то Поколение Intel, 13-то Поколение Intel

Форм фактор: mATX Form Factor; 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

Тип памет: 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)

Звук: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Dedicated audio PCB layers

LAN: 1 x Realtek 1Gb Ethernet

Графика: 1 x D-Sub port; 1 x HDMI® port**

ОС: Windows® 11 64-bit, Windows® 10 64-bit

Конектори: 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 1 x USB 2.0 header supports additional 2 USB 2.0 ports; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header

Чипсет: - AMD B550

Форм фактор: - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design

Тип памет: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - Max. capacity of system memory: 64GB**; - Supports Extreme Memory Profile (XMP) memory modules; - 15? Gold Contact in DIMM Slots*

Звук: - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection

LAN: - PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111H; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE

Графика: - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Three graphics output options: D-Sub, DVI-D and HDMI; - Supports Triple Monitor; - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required); - Supports HDR (High Dynamic Range) with HDMI 2.1; - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port; - Supports Microsoft® PlayReady

ОС: - Microsoft® Windows® 10 64-bit

Сокет: 1151

Слотове за памет: 2

Wi-Fi: Не

Тип памет: DDR4

Поддържани процесори: 8-мо Поколение Intel, 9-то Поколение Intel

Максимален капацитет поддържана памет: 32 GB

Максимална честота памет: 2666 MHz

Чипсет: Intel H610

Сокет: Socket 1700

Форм фактор: Micro ATX

Слотове за памет: 2

Тип памет: DDR4 SDRAM

Разположение на устройството: Вграден

LAN: 1 (RJ-45)

Форм фактор: Micro ATX Form Factor; 22.3cm x 19.3cm

Тип памет: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules; 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE`s website for more information.)

Звук: Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Графика: Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.

ОС: Support for Windows 11 64-bit; Support for Windows 10 64-bit

Конектори: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x RGB LED strip header; 1 x front panel header; 1 x front panel audio header; 1 x speaker header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x Clear CMOS jumper; 1 x chassis intrusion header

Чипсет: Intel H610

Сокет: 1700

Форм фактор: Micro ATX - 22.3 x 19.3 cm

Слотове за памет: 2

Тип памет: DDR4

Поддържани процесори: 12-то Поколение Intel, 13-то Поколение Intel, 14-то Поколение Intel

Максимален капацитет поддържана памет: 64 GB

Чипсет: Intel H610

Форм фактор: mATX, 200mmx236.16mm

Тип памет: 2x DDR5, Maximum Memory Capacity 96GB;Memory Support DDR5 5600 MHz (by JEDEC & POR);Supports Intel® XMP 3.0 OC;Supports Dual-Controller Dual-Channel mode;Supports non-ECC, un-buffered memory

Звук: Realtek® ALC897 Codec;7.1-Channel High Definition Audio

LAN: Realtek® RTL8111H Gigabit LAN

Графика: 1x HDMI™;Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*;1x VGA;Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

USB: 4x USB 2.0 (Rear);4x USB 2.0 (Front);2x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front)
