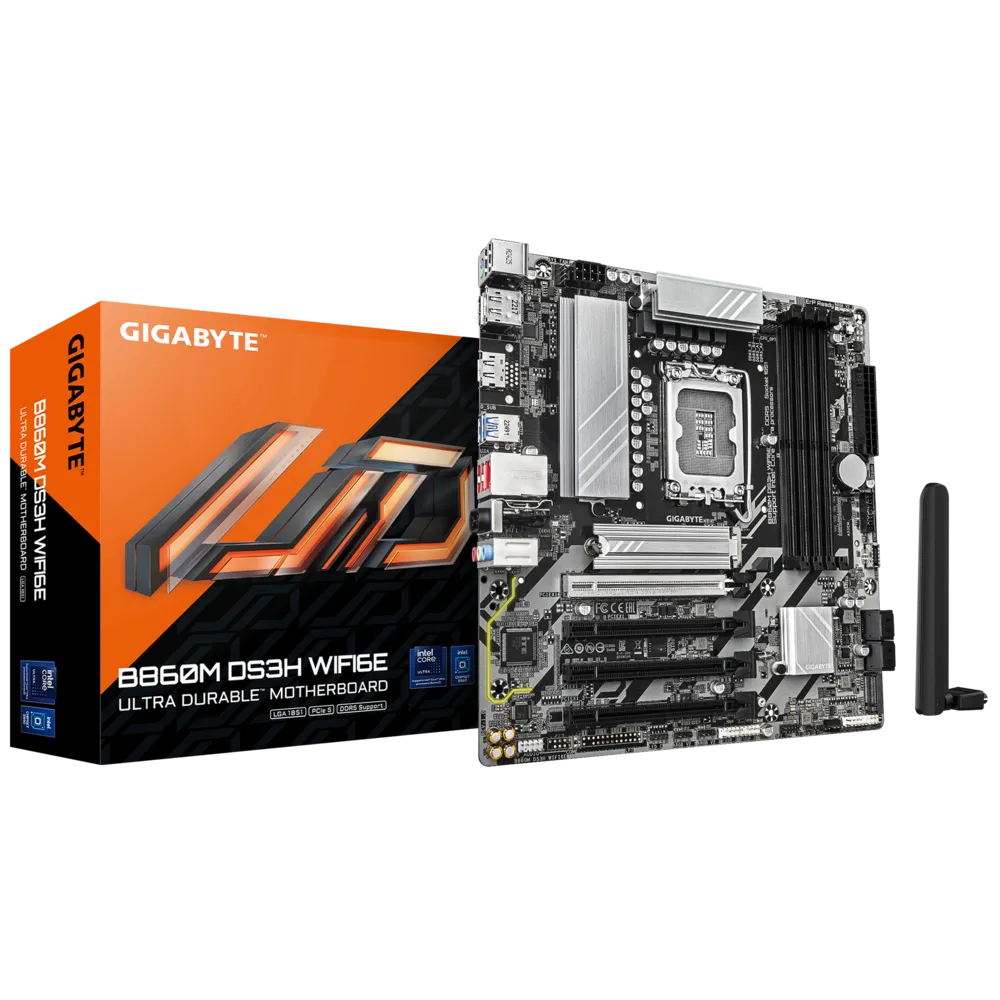

GB B860M DS3H WIFI6E
Код: B860M DS3H WIFI6E
172.69 €
Цената е с ДДС
Доставка: 2 работни дни · безплатна до офис на Speedy
ДОБАВИ ЗА СРАВНЕНИЕ
Основни характеристики:
- Чипсет: Intel® B860 Express Chipset
- Форм фактор: Micro ATX Form Factor; 24.4cm x 24.4cm
- Wi-Fi: Intel® Wi-Fi 6E AX211 (PCB rev. 1.0);- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard;Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1);- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.3;- Support for 11ax 160MHz wireless standard
- Тип памет: Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules;4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory;Dual channel memory architecture;Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode);Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;Support for Extreme Memory Profile (XMP) memory modules
- Звук: Realtek® Audio CODEC;High Definition Audio;2/4/5.1/7.1-channel
- LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Графика: Integrated Graphics Processor-Intel® HD Graphics support:;- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;* Support for HDMI 2.1 version and HDCP 2.3.;- 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz;* Support for DisplayPort 2.1 version.;(Graphics specifications may vary depending on CPU support.);Support for up to triple-display at the same time
Изображенията на някои продукти са илюстративни и могат да се различават от реалния им вид*
ТЕХНИЧЕСКИ ХАРАКТЕРИСТИКИ:
Чипсет
Intel® B860 Express Chipset
Форм фактор
Micro ATX Form Factor
24.4cm x 24.4cm
Wi-Fi
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Тип памет
Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Звук
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Графика
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Bluetooth
5.3
ОС
Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel® NPU driver is only supported on Windows 11
Norton® Internet Security (OEM version)
LAN bandwidth management software
Конектори
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot
Chipset:
- 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
Rear panel I/O
iTE® I/O Controller Chip
Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
