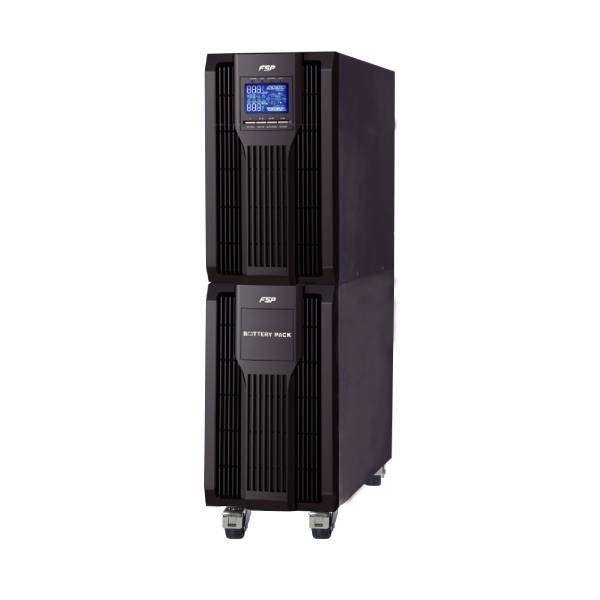

FORTRON CHAMP 10K TOWER ONLINE
Код: PPF90A0802
1524.08 €
Цената е с ДДС
Доставка: 2 работни дни · спрямо ценовите условия на куриера
ДОБАВИ ЗА СРАВНЕНИЕ
Основни характеристики:
- Изход: Output Voltage 208/220/230/240 VAC;AC Voltage Regulation ±1%;Output Frequency Range 46Hz ~ 54Hz or 56Hz ~ 64Hz;Current Crest Ratio 3:1;Harmonic Distortion ≤ 3 % THD (Linear Load), ≤ 5 % THD (Non-linear Load);Output Transfer Time (Typical) Zero (AC to DC), Zero (Inverter to Bypass);Output Waveform (Batt. Mode) Pure Sinewave;
- Стандарти: Safety / EMC IEC 62040-1(Safety) / IEC 62040-2 (EMC) / CE
- Капацитет съхранение: 10000 VA / 9000W
- Батерия: Battery Type 9Ah / 10Ah;Numbers 16 – 20pcs(Adjustable);Charging Current (max) 1A, 2A, 4A, 6A (Adjustable,6A only for 16pcs baterries);Charging Voltage 218.4V ±1%(based on 16pcs batteries)
- Аларми: Battery Mode Sounding every 4 seconds;Low Battery Sounding every second;Overload Sounding twice per second;Fault Continuously sounding
- Вход: Input Voltage Range 110-300 VAC (50% load), 176-300VAC (100% load);Input Frequency 46Hz ~ 54Hz or 56Hz ~ 64Hz;Power Factor ≥ 0.99 @ Nominal Voltage (100% load)
- Модел: Champ TW 10K
Изображенията на някои продукти са илюстративни и могат да се различават от реалния им вид*
ТЕХНИЧЕСКИ ХАРАКТЕРИСТИКИ:
Изход
Output Voltage 208/220/230/240 VAC
AC Voltage Regulation ±1%
Output Frequency Range 46Hz ~ 54Hz or 56Hz ~ 64Hz
Current Crest Ratio 3:1
Harmonic Distortion ≤ 3 % THD (Linear Load), ≤ 5 % THD (Non-linear Load)
Output Transfer Time (Typical) Zero (AC to DC), Zero (Inverter to Bypass)
Output Waveform (Batt. Mode) Pure Sinewave
Стандарти
Safety / EMC IEC 62040-1(Safety) / IEC 62040-2 (EMC) / CE
Капацитет съхранение
10000 VA / 9000W
Батерия
Battery Type 9Ah / 10Ah
Numbers 16 – 20pcs(Adjustable)
Charging Current (max) 1A, 2A, 4A, 6A (Adjustable,6A only for 16pcs baterries)
Charging Voltage 218.4V ±1%(based on 16pcs batteries)
Аларми
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice per second
Fault Continuously sounding
Вход
Input Voltage Range 110-300 VAC (50% load), 176-300VAC (100% load)
Input Frequency 46Hz ~ 54Hz or 56Hz ~ 64Hz
Power Factor ≥ 0.99 @ Nominal Voltage (100% load)
Модел
Champ TW 10K
Условия на работа
Humidity 0-95 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 58dB @ 1 Meter
Други
Management Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/ 2003/ 2008/ 2012/ 2016, Linux, and MAC
Размери
442 x 190 x 318mm (DxWxH)
